User Documentation for DGGRID version 8.41


Discrete Global Grid Generation Software

Kevin Sahr


Terms of Use

This documentation is part of DGGRID.

DGGRID is free software: you can redistribute it and/or modify it under the terms of the GNU Affero General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

DGGRID is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Affero General Public License for more details.

You should have received a copy of the GNU Affero General Public License along with the DGGRID source code. If not, see https://www.gnu.org/licenses/.

Credits

DGGRID was primarily written in C++ by Kevin Sahr. See the file CHANGELOG.md that comes with the source code for additional contributors.

The original DGGRID specifications were developed by (in alphabetical order): A. Ross Kiester, Tony Olsen, Barbara Rosenbaum, Kevin Sahr, Ann Whelan, and Denis White.

DGGRID was made possible in part by funding from the US Environmental Protection Agency, PlanetRisk, Inc., Culmen International, the Ruhr-University Bochum/GeoInsight Project, Turtle Conservancy, and the University of Tartu Landscape Geoinformatics Lab.

DGGRID can optionally make use of the following external library (not included):

  • The Open Source Geospatial Foundation’s GDAL translator library for raster and vector geospatial data formats (see gdal.org)

DGGRID uses the following third-party libraries (included with the DGGRID source code):

  • Angus Johnson’s Clipper library; see http://www.angusj.com.

  • George Marsaglia’s multiply-with-carry “Mother-of-all-RNGs” pseudo-random number generation function.

  • The gnomonic projection code is adapted from Gerald Evenden’s PROJ.4 library

  • Frank Warmerdam’s Shapelib library

The github source code distribution contains instructions on building DGGRID. The examples directory contains example DGGRID metafiles (with associated input files).

DGGRID version 8.41 was released May 31, 2025

www.discreteglobalgrids.org

https://github.com/sahrk/DGGRID

Table of Contents

  1. Introduction

  2. Metafile Format

  3. General Parameters

  4. Specifying the DGG

  5. Specifying Per-Cell Grid Output

  6. Grid Generation: Whole Earth or Clipping Polygons

  7. Specifying Point File Input

  8. Grid Generation: Point Binning

  9. Binning Point Values

  10. Presence/Absence Binning

  11. Performing Address Conversions

  12. Outputting Grid Statistics

1. Introduction

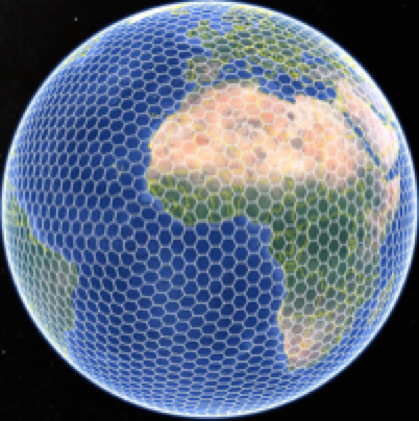

DGGRID is a command-line application designed to generate and manipulate icosahedral discrete global grids (DGGs) [Sahr et al., 2003]. A single execution of DGGRID can perform one of six distinct operations:

  1. Grid Generation from clipping polygons. Generate the cells of a DGG, either covering the complete surface of the earth or covering only a specific set of regions on the earth’s surface.

  2. Grid Generation from points. Generate the cells of a DGG, either covering the complete surface of the earth or covering only a specific set of regions on the earth’s surface.

  3. Point Value Binning. Bin a set of floating-point values associated with point locations into the cells of a DGG, by assigning to each DGG cell the arithmetic mean of the values which are contained in that cell.

  4. Presence/Absence Binning. Given a set of input files, each containing point locations associated with a particular class, DGGRID outputs, for each cell of a DGG, a vector indicating whether or not each class is present in that cell.

  5. Address Conversion. Transform a file of locations from one address form (such as longitude/latitude) to another (such as DGG cell indexes).

  6. Output Grid Statistics. Output a table of grid characteristics for the specified DGG.

DGGRID is designed to be run from the Unix command line. DGGRID requires a single command line argument, the name of a “metafile,” which is a plain text file that describes the actions that DGGRID is to perform in that run. Thus DGGRID is executed by typing at the command line:

dggrid metaFileName.meta

The metafile consists of a series of key-value pairs that tell DGGRID how to proceed. The format of this metafile is described in the next section. The rest of the sections in this documentation give more detail on setting up metafile parameters to control the execution of DGGRID.

2. Metafile Format

Metafiles are text files in which each line is either a comment, a blank line, or a key-value pair that designates the value of a parameter for DGGRID. Blank lines are ignored by DGGRID. Lines beginning with ‘#’ are comments and are also ignored by DGGRID.

A parameter is specified by a single line of the form:

parameterName value

Parameter names are not case sensitive. A parameter can be of one of five types. The five parameter types, with a description of their legal values, are:

  1. boolean. Legal values are TRUE and FALSE (case sensitive).

  2. integer. Any integer is a legal value.

  3. double. Any real number, specified in decimal form, is a legal value.

  4. string. The remainder of the line following the parameter name is interpreted as the value.

  5. choice. Legal values consist of one of a finite set of keywords specific to that parameter. The values of choice parameters are not case sensitive but by convention are usually written in all capital letters.

Some parameters are only used for specific operations or when specific other parameter conditions prevail. All parameters have a default value which is used if no value is specified. Detailed information on each parameter is given in the following sections and in Appendix A. Repeating a parameter specification within the same metafile over-writes the previously specified value; the last value given for a particular parameter will be used.

Note that a number of parameters from previous versions of DGGRID are still active in the code but are not described in this documentation; that is because those parameters have not been fully integrated with the new features in this beta release. Those parameters will be fully restored in a future release.

See the examples directory in the DGGRID source code distribution for examples of DGGRID metafiles.

3. General Parameters

In this section we describe the parameters which are used by every run of DGGRID.

As described in Section 1, each run of DGGRID consists of one of five distinct modes of operation. The operation is specified using the choice parameter dggrid_operation. The allowable values for this parameter are:

  • GENERATE_GRID - perform grid generation from polygons (see Sections 6)

  • GENERATE_GRID_FROM_POINTS - perform grid generation from points (see Section 8)

  • BIN_POINT_VALS - perform point value binning (see Section 9)

  • BIN_POINT_PRESENCE - perform presence/absence binning (see Section 10)

  • TRANSFORM_POINTS - perform address conversion (see Section 11)

  • OUTPUT_STATS - output a table of grid characteristics (see Section 12)

All operation modes require the specification of a single DGG. The parameters for specifying a DGG are described in Section 4.

The integer parameter precision specifies the number of digits to the right of the decimal place DGGRID is to use when outputting floating point numbers, including latitude/longitude values.

The parameters verbosity, pause_on_startup, and pause_before_exit exist solely to support debugging and can be ignored by users. These parameters are described below.

The integer parameter verbosity is used to control the amount of debugging information which is printed by DGGRID. Valid values are from 0 to 3. The default value, 0, gives minimal output, which includes the value of all active parameter settings. It is not recommended that you increase this value.

Setting either of the boolean parameters pause_on_startup and/or pause_before_exit to TRUE causes DGGRID to pause execution either immediately after loading parameters, or just before program termination, respectively. The default value for both parameters is FALSE.

4. Specifying the DGG

Background

As described in [Sahr et al., 2003], a DGG system can be specified by a set of independent design choices. The first design choice is the desired base polyhedron; DGGRID can generate DGGs that have an icosahedron as their base polyhedron. The remaining primary design choices are:

  1. The orientation of the base polyhedron relative to the earth.

  2. The hierarchical spatial partitioning method defined symmetrically on a face (or set of faces) of the base polyhedron. This usually includes specifying the cell topology and an aperture, which determines the area ratio between cells at sequential resolutions.

  3. The transformation between each face and the corresponding spherical surface.

  4. The resolution (or degree of recursive partitioning).

The current version of DGGRID supports DGGs that use either the Icosahedral Snyder Equal Area (ISEA) projection [Snyder, 1992] or the icosahedral projection of R. Buckminster Fuller [1975] (as developed analytically by Robert Gray [1995] and John Crider [2008]). DGGRID can generate grids with cells that are triangles, diamonds, or hexagons. Grids with a triangle or diamond topology must use an aperture of 4, while hexagon grids can use an aperture of 3, 4, 7, or an arbitrary mixed sequence of those apertures. DGGRID also supports specifically designed “preset” DGGs, including the mixed aperture hexagonal grids the US EPA Superfund_500m DGG (see Appendix E), and the PlanetRisk DGG (see Appendix F).

Detailed information about the parameters that specify each of the DGG design choices are given below, along with a discussion on specifying the spherical earth radius.

Preset DGG Types

DGGRID provides a number of preset DGG types for your use. A preset type can be chosen by specifying one of the following values for the choice parameter dggs_type:

  • CUSTOM (default) - indicates that the grid parameters will be specified manually (see below)

  • SUPERFUND - the Superfund_500m grid (see Appendix E)

  • PLANETRISK - the PlanetRisk grid (see Appendix F)

  • ISEA4T - ISEA projection with triangle cells and an aperture of 4

  • ISEA4D - ISEA projection with diamond cells and an aperture of 4

  • ISEA3H - ISEA projection with hexagon cells and an aperture of 3

  • ISEA4H - ISEA projection with hexagon cells and an aperture of 4

  • ISEA7H - ISEA projection with hexagon cells and an aperture of 7

  • ISEA43H - ISEA projection with hexagon cells and a mixed sequence of aperture 4 resolutions followed by aperture 3 resolutions

  • FULLER4T - FULLER projection with triangle cells and an aperture of 4

  • FULLER4D - FULLER projection with diamond cells and an aperture of 4

  • FULLER3H - FULLER projection with hexagon cells and an aperture of 3

  • FULLER4H - FULLER projection with hexagon cells and an aperture of 4

  • FULLER7H - FULLER projection with hexagon cells and an aperture of 7

  • FULLER43H - FULLER projection with hexagon cells and a mixed sequence of aperture 4 resolutions followed by aperture 3 resolutions

Each preset grid type sets appropriate values for all of the parameters that specify a DGG. The default values for each preset grid type are given in Appendix B. These default preset values can be overridden by explicitly setting the desired individual parameters in your metafile as described below. In particular, note that all preset grid types have a default resolution; your desired DGG resolution should be specified using the parameter dggs_res_spec (see below).

Appendix D gives some statistics on the individual resolutions of the hexagonal ISEA preset DGGs.

Manually Setting DGG Parameters

The following parameters are used to describe a specific DGG instance.

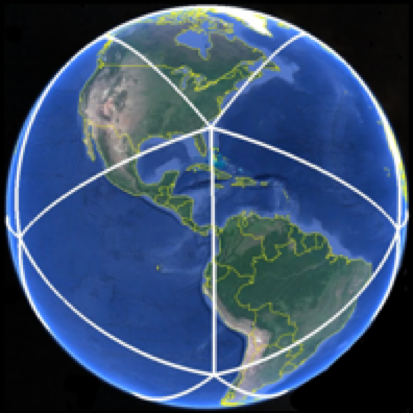

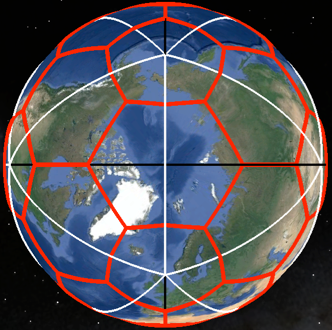

1. Specifying the orientation: The orientation of a DGG base icosahedron relative to the earth can be specified explicitly, randomly determined, or set so that a specified point is maximally distant from icosahedron vertices, by setting the choice parameter dggs_orient_specify_type to SPECIFIED, RANDOM, or REGION_CENTER respectively.

If dggs_orient_specify_type is set to SPECIFIED the DGG orientation is determined by the location of a single icosahedron vertex and the azimuth from that vertex to an adjacent vertex. The double parameters dggs_vert0_lon and dggs_vert0_lat are used to specify the location of the vertex, and the double parameter dggs_vert0_azimuth to specify the azimuth to an adjacent vertex; all or these parameters are in decimal degrees. Note that the default DGG placement, which is symmetrical about the equator and has only a single icosahedron vertex falling on land, is specified by:

dggs_vert0_lon 11.25
dggs_vert0_lat 58.28252559
dggs_vert0_azimuth 0.0

If dggs_orient_specify_type is set to RANDOM the orientation of the DGG is randomly determined. All parameter values (including the randomly generated values for a vertex location and azimuth used to orient the grid) will be output for your information to the file specified by the string parameter dggs_orient_output_file_name. Some control over the random specification of the grid orientation is afforded by the choice parameter rng_type and the integer parameter dggs_orient_rand_seed. The choice parameter rng_type indicates which pseudo-random number generator to use. A value of RAND indicates that the C standard library rand/srand functions should be used. A value of MOTHER (the default) indicates that George Marsaglia’s “Mother-of-all-RNGs” function should be used. The seed value for DGGRID to use to initialize the pseudo-random number sequence can be set using the integer parameter dggs_orient_rand_seed.

If the current operation involves only a small region on the earth’s surface it is often convenient to orient the grid so that no icosahedron vertices occur in the region of interest. Such an orientation can be specified by setting dggs_orient_specify_type to REGION_CENTER and then specifying the center point of the region using the double parameters region_center_lon and region_center_lat (both in decimal degrees).

All operations require that at least one DGG be specified. A single DGG may be used by setting the integer parameter dggs_num_placements to 1 (the default). Alternatively, you may perform the desired operation on multiple DGGs by setting dggs_num_placements to the desired number. If the grid orientation is randomly chosen, this will perform the desired operation on multiple randomly oriented grids. The parameters for each grid will be output to a separate file based on the value of dggs_orient_output_file_name, with an additional suffix indicating the grid number (0001 to 000n where n equals the value of dggs_num_placements). This suffix will also be used to designate the corresponding output files (as specified in the particular operation being performed). Note that if dggs_orient_specify_type is set to any value other than RANDOM all of the grids generated will have exactly the same orientation.

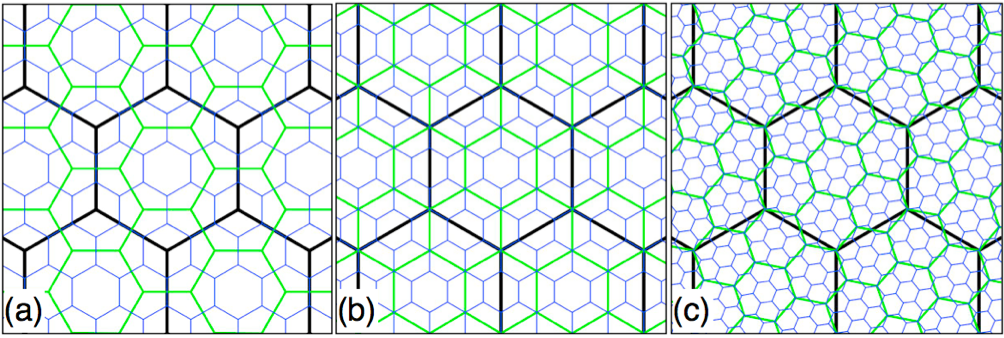

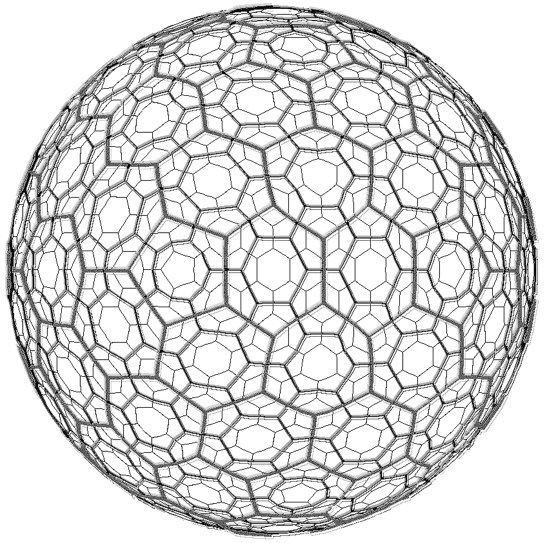

2. Specifying the hierarchical spatial partitioning method: The hierarchical partitioning method used to generate the DGG is specified by choosing a grid topology and aperture (defined as the ratio of areas between cells in a given DGG resolution and the next finer resolution). The topology is specified using the choice parameter dggs_topology with one of the values: HEXAGON (default), TRIANGLE, or DIAMOND.

DGGRID can create grids that are produced using a single aperture, as well as hexagon grids produced using a mixed aperture of some number of aperture 4 resolutions followed by aperture 3 resolutions, or hexagon grids with an arbitrary mixed aperture sequence of resolutions. The type of aperture sequence is specified using the choice parameter dggs_aperture_type with a value, respectively, of either PURE (default), MIXED43, or SEQUENCE.

If a PURE aperture type is specified then the desired aperture is specified with the integer parameter dggs_aperture. The valid values for aperture are dependent on the chosen topology. DGGRID can create HEXAGON DGGs with an aperture of 3, 4, or 7, and DIAMOND and TRIANGLE DGGs with an aperture of 4.

If a MIXED43 aperture type is specified then the parameter dggs_aperture is ignored. Instead, the integer parameter dggs_num_aperture_4_res (default 0) specifies the number of resolutions which use aperture 4; the remaining grid resolutions up to the desired grid resolution (see the next subsection) are generated using aperture 3. Note that the parameter dggs_num_aperture_4_res is ignored unless dggs_aperture_type is MIXED43. Only HEXAGON topology grids may use the MIXED43 aperture type.

If a SEQUENCE aperture type is specified then the parameter dggs_aperture is ignored. Instead, the aperture sequence for the DGGS must be specified as a string of 3’s, 4’s, and/or 7’s in the string parameter dggs_aperture_sequence (default “333333333333”).

3. Specifying the projection: The regular polygon boundaries and points associated with DGG cells are initially created on the planar faces of an icosahedron; they must then be inversely projected to the sphere. The desired projection to use for this is specified by the choice parameter dggs_proj. The valid values are ISEA, which specifies the Icosahedral Snyder Equal Area projection [Snyder, 1992], or FULLER, which specifies the icosahedral Dymaxion projection of R. Buckminster Fuller [1975] (as developed analytically by Robert Gray [1995] and John Crider [2008]). The ISEA projection creates equal area cells on the sphere at the expense of relatively high shape distortion, while the Fuller projection strikes a balance between area and shape distortion. See Gregory et al. [2008] for a more detailed discussion of these trade-offs.

4. Specifying the resolution: The desired DGG resolution can be specified using one of three methods chosen using the choice parameter dggs_res_specify_type with one of the following values:

SPECIFIED (default) - the desired resolution is explicitly specified by setting the value of the integer parameter dggs_res_spec (default 9).

CELL_AREA - the desired resolution is set to the DGG resolution whose average cell area is closest to the area specified by the double parameter dggs_res_specify_area (in square kilometers).

INTERCELL_DISTANCE - the desired resolution is set to the DGG resolution whose approximate intercell distance is closest to the distance specified by the double parameter dggs_res_specify_intercell_distance (in kilometers). Note that the intercell distance calculation is performed on the plane, and therefore is only useful as a relative measure. See Appendix D for empirically derived intercell statistics for some of the hexagonal ISEA preset grid types.

If CELL_AREA or INTERCELL_DISTANCE is specified, then the desired area or intercell distance (as applicable) is rounded up or down to the nearest grid resolution based on the value of the boolean parameter dggs_res_specify_rnd_down; a value of TRUE indicates round down, a value of FALSE indicates round up. The chosen resolution is always output by DGGRID for your information. The calculation of cell areas and intercell distances uses the value specified for the earth radius (see Subsection 5 below).

In general, DGGRID will attempt to generate grids up to a maximum resolution of 35. For grids with a dggs_aperture_type of SEQUENCE, the maximum resolution DGGRID will attempt is determined by the length of the value of the string parameter dggs_aperture_sequence. If the dggs_type is specified to be SUPERFUND then the only supported value for dggs_res_specify_type is SPECIFIED, and the maximum resolution is 9.

However, the maximum resolution which can actually be successfully generated by DGGRID is a function of the specified grid topology, projection, the size of data types on the machine on which DGGRID is compiled and executed, and the location of the generated grid region relative to the faces of the underlying icosahedron. When generating very high resolution grids the user should be aware that, even if DGGRID reports success, the indexes and output cell geometries should be validated to make sure that they are not degenerate.

5. Specifying the earth radius: The choice parameter proj_datum specifies a datum that DGGRID will use to determine the spherical radius of the earth. The legal values for this parameter are given below, along with the earth radius that they indicate:

  • WGS84_AUTHALIC_SPHERE (default): 6371.007180918475 km

  • WGS84_MEAN_SPHERE: 6371.0087714 km

  • CUSTOM_SPHERE: the earth radius (in kilometers) will be read from the double parameter proj_datum_radius

Note that the earth radius is not used in the process of generating grid geometries in geodetic coordinates; such generation is performed on a unit sphere. The radius is only used in determining the grid resolution (when dggs_res_specify_type is not SPECIFIED) and in generating grid statistics in kilometers.

5. Specifying Per-Cell Grid Output

Any run of DGGRID which produces a set of grid cells (choice parameter dggrid_operation values GENERATE_GRID, GENERATE_GRID_FROM_POINTS, TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE) can generate, for the specified cells, any of the following: cell boundaries, center points, topological neighbors, and/or spatial hierarchy children. Each type of data can be output to a separate file, each with its own file format, or some or all of the data for each cell can be combined in a single output file.

All DGG cell boundaries and center points output from DGGRID are given in geodetic (longitude/latitude) coordinates in decimal degrees.

The choice parameters cell_output_type and point_output_type specify the desired output file format for cell boundaries and cell points respectively. Each of these parameters may have the following values:

  • NONE - indicates that no output of that type will be performed

  • AIGEN - indicates that the cell/point output should be in ARC/INFO Generate file format (see Section 5).

  • SHAPEFILE - indicates that the cell/point output should be in ESRI Shapefile format

  • KML - indicates that the cell/point output should be in KML (Google Earth) format

  • GEOJSON - indicates that the cell/point output should be in GeoJSON format

  • GDAL - indicates that the cell/point output should be a GDAL-compatible file format

  • GDAL_COLLECTION - indicates that the cell/point geometry output should be combined with other cell information in a GDAL-compatible file format

  • TEXT - indicates that text file output in an operation-specific format (point_output_type only)

Note that DGGRID must be built with GDAL in order to use the output types GDAL or GDAL_COLLECTION.

A value of GDAL for parameter cell_output_type and/or point_output_type requires that the type of GDAL-compatible vector file format (see [gdal.org]) be specified as the value of the string parameter cell_output_gdal_format and/or point_output_gdal_format respectively. Note that under the current implementation the GDAL SHAPEFILE format has trouble handling file names that contain directory path information. In such a situation we suggest that you use the SHAPEFILE output type instead (which does not make use of GDAL).

The file name prefix to use for the boundary or point output file is specified using the string parameter cell_output_file_name or point_output_file_name respectively. DGGRID will add the appropriate file suffix to the specified prefix name, depending on the chosen file format.

DGG output files created by DGGRID can be quite large, depending on the size of the region being generated and the resolution of the grid. The generated cell boundaries and/or points can be output across multiple files by setting the integer parameter max_cells_per_output_file to the maximum number of cells to output to a single file. Setting the parameter to 0 (the default) will cause DGGRID to output all cells to a single file, no matter how large. If max_cells_per_output_file is greater than 0, output files are distinguished by appending a “_1”, “_2”, etc. to each output file name.

Since cell boundaries are only true regular polygons in the chosen projection space it may be desirable to introduce additional points into the cell edges to better preserve the boundary shape after inverse projection to longitude/latitude coordinates. The number of additional points to introduce into each edge is specified by the integer parameter densification. A value of 0 (the default) indicates that no densification should be performed.

By default, each longitude value is output in the range -180.0 to 180.0 degrees. When visualized using a 2D program, cells that straddle the anti-meridian can appear to “wrap” across the image. The choice parameter longitude_wrap_mode can be used to force the output vertex longitudes of such cells to be entirely positive (value UNWRAP_EAST), entirely negative (value UNWRAP_WEST), or to follow the default behavior (the default value WRAP). Setting the boolean parameter unwrap_points to TRUE (the default value) forces each output cell center point to follow the associated cell when it is unwrapped, so that cells and points will display together in a 2D program. Note that some GDAL-output file formats (e.g., GDAL KML) clamp the longitude range to -180.0 to 180.0 degrees; in those cases unwrapping will be effectively (and silently) ignored.

A unique integer cell identifier is output along with each cell boundary or point. The integer identifier type is specified using the choice parameter output_cell_label_type, which can have one of four values:

GLOBAL_SEQUENCE (default when dggs_type is not SUPERFUND) - the identifier is the appropriate value in a linear sequence 1 to n, where n is the total number of cells in the whole earth DGG

ENUMERATION - the generated cells are numbered from 1 to n, where n is the total number of cells generated

OUTPUT_ADDRESS_TYPE - the identifier is output in the form indicated by the choice parameter output_address_type (see Appendix C).

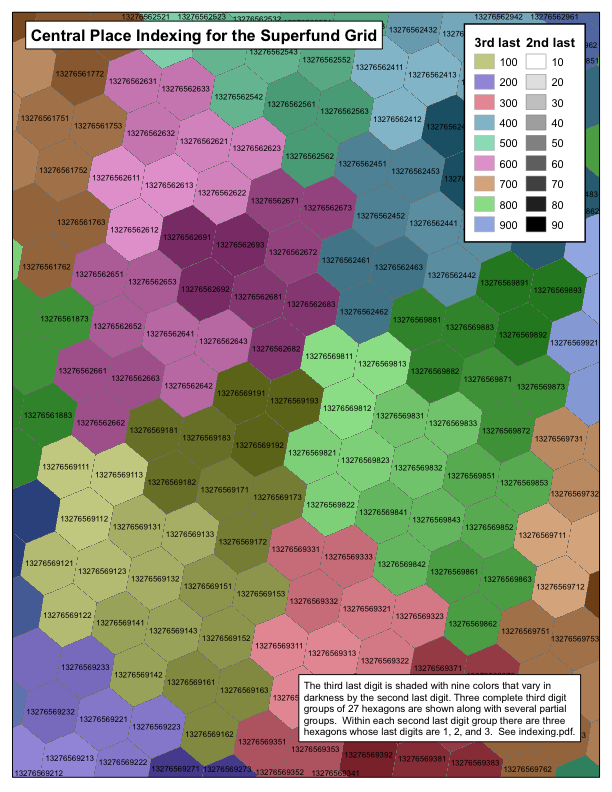

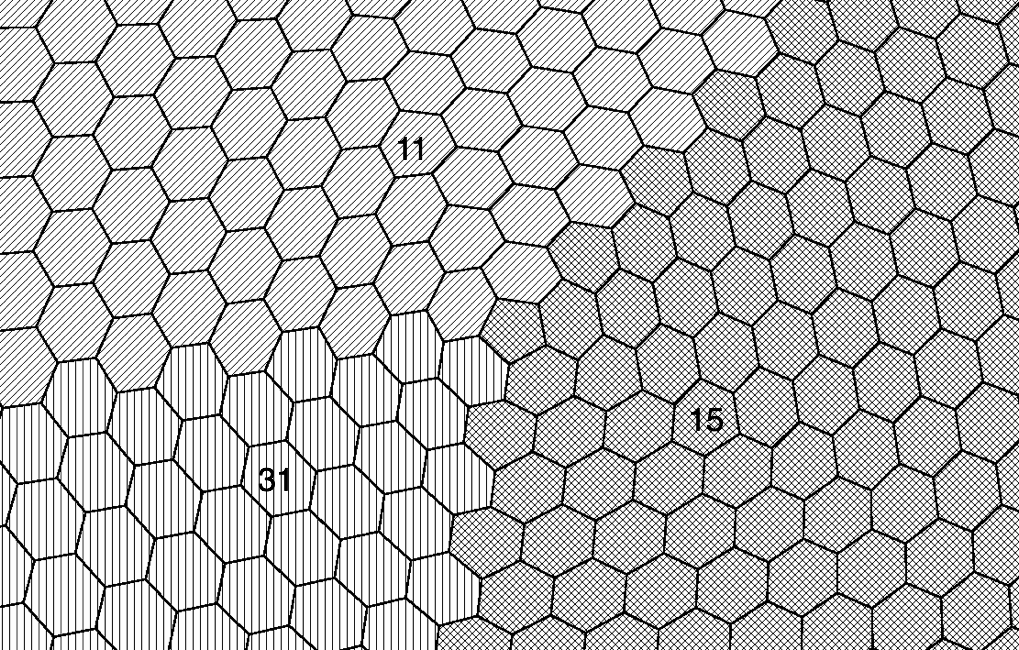

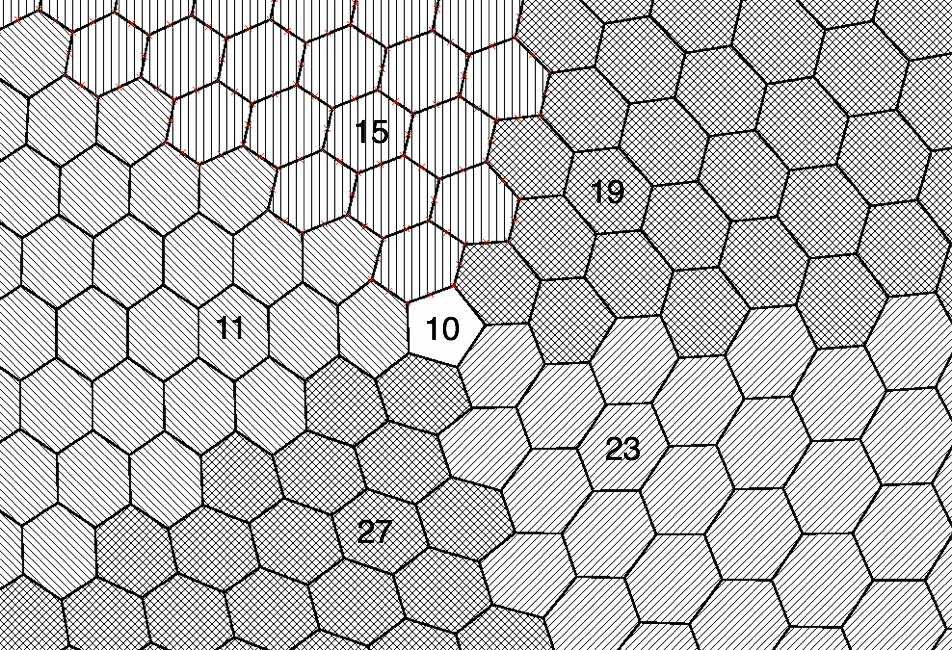

SUPERFUND (preset default when dggs_type is SUPERFUND) - the identifier is a condensed Superfund_500m index (see Appendix D). This value must be (and can only be) used when dggs_type is SUPERFUND.

Note that DGGRID provides two ways to generate output in either ESRI Shapefile format or KML:

  1. Set cell_output_type and/or point_output_type to SHAPEFILE or KML, or

  2. Set cell_output_type and/or point_output_type to GDAL and cell_output_gdal_format and/or point_output_gdal_format to SHAPEFILE or KML

When output is to an ESRI Shapefile the cell identifier is stored in a global_id field. The ESRI Shapefile format limits integer fields to 32-bit integer size, which is not sufficient for storing the identifiers associated with high resolution DGGs. Therefore DGGRID creates the Shapefile field global_id as a fixed width string with a width specified by the integer parameter shapefile_id_field_length (default 11).

The color and width of KML output cell boundaries can be controlled using the string parameter kml_default_color (default ffffffff or opaque white) and the integer parameter kml_default_width (default 4) respectively. KML color values are expressed in 8 digit hexadecimal notation of the form aabbggrr, with two hexadecimal digits (00 to ff) each for the alpha, blue, green, and red components.

In addition to outputting the boundaries and center points of the selected cells, DGGRID can output the topological neighbors of each of the cells; i.e., the DGG cells that are adjacent to/share an edge with each cell. DGGRID currently only supports neighbors for hexagon and diamond grids (not triangle grids). To output cell neighbors, set the choice parameter neighbor_output_type to TEXT. Specify the name of the output neighbors file in the string parameter neighbor_output_file_name. For each selected cellID the output file will contain a single line of the form:

cellID neighborID~1~ neighborID~2~ … neighborID~n~

with the neighborID’s for each cell listed in counter-clockwise order about the central cellID cell.

DGGRID can also output the spatial children of the selected cells. That is, for each of the selected cells, DGGRID will determine and output the cells in the next finer resolution of the DGGS which intersect or are contained within the selected cell. To output cell spatial children, set the choice parameter children_output_type to TEXT. Specify the name of the output children file in the string parameter children_output_file_name. For each selected cellID the output file will contain a single line of the form:

cellID childID~1~ childID~2~ … childID~n~

So far we have discussed outputting each type of cell data to a different output file. One or more of the features associated with each cell may be output together in a single file by specifying the output type GDAL_COLLECTION for each such desired feature ( cell_output_type, point_output_type, neighbor_output_type, and/or children_output_type). The chosen features must include either the cell boundary, point, or both. The output file format for this single collection file is specified in the string parameter collection_output_gdal_format, as described above for the parameters cell_output_gdal_format and point_output_gdal_format. Note that some GDAL formats may not support the output of neighbors or children. The file name prefix to use for this collection file is specified using the string parameter collection_output_file_name.

6. Grid Generation: Whole Earth or Clipping Polygons

Specifying the value GENERATE_GRID for the choice parameter dggrid_operation will tell DGGRID to create all, or some portion of, the specified DGG (see the previous section). The choice parameter clip_subset_type controls the amount of the grid that will be generated. Setting the parameter clip_subset_type to WHOLE_EARTH will generate the entire earth at the specified resolution.

A subset of WHOLE_EARTH sequential cell IDs can be generated by specifying the first and last sequence numbers to generate by setting the values of the integer parameters output_first_seqnum and output_last_seqnum respectively.

DGGRID provides three methods for generating a subset of the specified DGG. The portion of the grid to be generated can be specified by:

  • one or more files containing clipping polygons that indicate the regions to be generated (clip_subset_type values AIGEN, SHAPEFILE, or GDAL)

  • one or more text files containing the cell sequence numbers of the grid cells to be generated (clip_subset_type value SEQNUMS)

  • the cell sequence numbers of one or more coarser resolution cells to use as clipping polygons to indicate the regions to be generated (clip_subset_type values COARSE_CELLS)

Each of these methods is discussed below. Note that DGGRID must be built with GDAL to make use of GDAL file formats.

A DGG that covers a portion of the earth’s surface can be generated by specifying one or more files containing the clipping polygons which DGGRID will use to determine the portion of the grid to generate. DGGRID supports three types of clipping files: ARC/INFO Generate files, ESRI Shapefiles, and vector file formats readable by GDAL. To specify a clipping file format, set the parameter clip_subset_type to AIGEN, SHAPEFILE, or GDAL respectively.

If clip_subset_type is set to AIGEN, SHAPEFILE, or GDAL then the string parameter clip_region_files should be set to a space-delimited list of file names, in the specified format, containing polygons to use for clipping. If clip_subset_type is GDAL then the files must be in a GDAL-readable vector format (see gdal.org). The polygons must be specified using geodetic (latitude/longitude) coordinates. Limitations in DGGRID require that each clipping polygon be no more than approximately 60° of great circle arc in extant in any direction. The exact limitation is determined by the relationship between each polygon and the underlying icosahedron; DGGRID will let you know if a polygon is too large for the grid generation you are attempting. In that event you must break the polygon into smaller polygons before using it in a clipping file.

When clip_subset_type is set to GDAL DGGRID will correctly handle holes in the clipping polygons if the boolean parameter clip_using_holes is set to TRUE (the default value is FALSE). Cells that intersect a polygon but are entirely contained in one of that polygon’s holes will not be chosen. Note that DGGRID will interpret holes as regular polygons in non-GDAL input files.

The polygon intersection library uses an integer grid, the coarseness of this grid is determined by the parameter clipper_scale_factor. Clipping with a low resolution grid can sometimes produce incorrect results; if this occurs try increasing the value of clipper_scale_factor (the default value is 1000000). But note that doing so may limit the extent of the region that can be clipped.

Intersections between the clipping polygons and the DGG cells are performed in the specified DGG projection space, with the great circle arcs between adjacent vertices in the original clipping polygons transformed into straight lines on the projection plane. If adjacent vertices in the original clipping polygons are too far apart this may result in an inaccurate representation of the region boundary in the clipping space. This effect can be minimized by introducing additional points into the great circle arcs before projection. Setting the double parameter geodetic_densify to some arc length (in decimal degrees) will cause DGGRID to introduce extra points into each edge arc so that no two vertices are more than the specified distance apart. Setting geodetic_densify to 0.0 (the default) indicates that no such densification is to be performed.

Alternately, in hexagon (only) grids the clipping regions to be generated can be the cell boundaries of one or more cells in some coarser resolution of the current multi-resolution DGGS (see Section 4). This is indicated by setting the parameter clip_subset_type to COARSE_CELLS. The integer parameter clip_cell_res must be set to the desired coarser resolution. The resolution must be less than the resolution of the cells being generated (as specified in Section 4), and must be greater than zero (because resolution 0 cells do not meet the clipping polygon intersection algorithm requirements, as described above). One or more cell sequence numbers from this coarser resolution grid must be specified, space delimited, in the parameter clip_cell_seqnums. The boundaries of these cells are then used as the input clipping polygons, as described above, including possible edge densification based on the value of parameter geodetic_densify. Because that approach to densification can result in an unnecessary number of vertexes and impact performance, we recommend instead using the integer parameter clip_cell_densification, which specifies a number of additional points to introduce into each cell edge prior to projection. We recommend using a value of 1 (the default) for very coarse resolutions to avoid anomalous results. A value of 0 indicates that no densification of these coarse clipping cells should be performed.

The cells for a given set of cell sequence numbers can be generated by setting the parameter clip_subset_type to SEQNUMS (this is not supported for grids with a dggs_aperture_type of SEQUENCE). Then clip_region_files must be set to one or more text files containing the list of cell sequence numbers to be generated. A single cell will be generated at most once; duplicate sequence numbers in the input will be ignored.

Note that a single execution of DGGRID can take several hours (or more!), depending on the resolution of the grid being generated and the number and complexity of the clipping polygons (we recommend reducing the number of vertices in clipping polygons whenever possible). You can control the frequency of feedback during grid generation by setting the integer parameter update_frequency. The value of this parameter specifies the number of cells that will be tested for inclusion before outputting a status update. The default value is 100000.

The per-cell output for the generated cells can be specified as described in Section 5. In addition, the parameter point_output_type has an additional value TEXT which will output the cell points, one-per-line, formatted as:

cellID,longitude,latitude

7. Specifying Point File Input

The choice parameter dggrid_operation values GENERATE_GRID_FROM_POINTS, BIN_POINT_VALS, TRANSFORM_POINTS, and BIN_POINT_PRESENCE specify operations that take input from files containing point locations. The input file format is specified by the choice parameter point_input_file_type, which can have a value of TEXT or GDAL (assuming DGGRID was built with the GDAL library).

The specific format for TEXT file input for each operation is described in the Section for that operation. The values in a TEXT file must be delimited by the character indicated within double quotes in the string parameter input_delimiter.

The operation TRANSFORM_POINTS currently only takes TEXT input; GDAL input files can not be used with that operation.

A single input file can be specified using the string parameter input_file_name. Multiple input files can be specified by setting the string parameter input_files to a space-delimited list of file names, in the specified format, containing points to use as input. If point_input_file_type is GDAL then the input file(s) must be in a GDAL-readable vector format (see gdal.org). The points must be specified using geodetic (latitude/longitude) coordinates.

If the input locations cover a substantial portion of the earth’s surface, then the choice parameter bin_coverage should be set to GLOBAL. If the locations covers only a relatively small portion of the earth’s surface then bin_coverage should be set to PARTIAL. This allows DGGRID to make trade-offs between speed and memory usage. GLOBAL location sets are processed more quickly, but may fail at higher DGG resolutions due to memory restrictions. PARTIAL location sets are processed more slowly, but can enable the use of higher resolution DGGs (depending on the actual extent of the input locations).

8. Grid Generation: Point Binning

Specifying the value GENERATE_GRID_FROM_POINTS for the choice parameter dggrid_operation will tell DGGRID to generate the cells of the specified DGG (see Section 4) that contain one or more of the points contained in the input files (specified as described in Section 7).

If the boolean parameter output_count is set to TRUE (the default is FALSE), for each output cell the number of input points that are contained in that cell is output in the cell field with the field name specified in the string parameter output_count_field_name (default value “count”).

9. Binning Point Values

Setting the choice parameter dggrid_operation to BIN_POINT_VALS tells DGGRID to bin a set of floating-point data values associated with geodetic coordinates into the cells of a DGG(s) specified as per Section 4. The binning is performed by assigning to each DGG cell the arithmetic mean of the values associated with the input points that are contained in that cell. The input file(s) containing the points to be binned are specified as described in Section 7.

If the input files are in GDAL format (choice parameter point_input_file_type has value GDAL), then the value for each input point is taken from the field named as specified in the string parameter input_value_field_name (default “value”).

If the input files are in TEXT format (choice parameter point_input_file_type has value TEXT), then each line in each input file should consist of a longitude, a latitude (both in decimal degrees), and a single floating-point value. These three values must be delimited by the character indicated within double quotes in the string parameter input_delimiter.

If the boolean parameter output_mean is set to TRUE (the default), for each output cell the arithmetic mean of the values associated with all input points that are contained in that cell is output in the cell field with the field name specified in the string parameter output_mean_field_name (default value “mean”).

If the boolean parameter output_count is set to TRUE (the default is FALSE), for each output cell the number of input points that are contained in that cell is output in a cell field with the field name specified in the string parameter output_count_field_name (default value “count”).

If the boolean parameter output_total is set to TRUE (the default is FALSE), for each output cell the total summation of the values associated with all input points that are contained in that cell is output in a cell field with the field name specified in the string parameter output_total_field_name (default value “total”).

In addition to the standard per-cell output described in Section 5, DGGRID can output the cells in a text file format by setting the choice parameter output_file_type to TEXT (the default for this operation; set to NONE for no text output), and the string parameter output_file_name (default “valsout.txt”) to the desired text output file name. DGGRID will output the cell address and associated values for each cell, one cell per line, into the text file. The cell addresses are output in the form indicated by the choice parameter output_address_type (see Appendix C), using the character specified by parameter output_delimiter to separate any address components and to separate the address from the associated value.

By setting the choice parameter cell_output_control you can limit DGGRID to only output those cells which contain values (OUTPUT_OCCUPIED), or you can tell DGGRID to output all cells (OUTPUT_ALL), in which case cells in which no values occurred will be output with a value of 0.0.

10. Presence/Absence Binning.

Setting the choice parameter dggrid_operation to BIN_POINT_PRESENCE tells DGGRID to perform presence/absence binning into the DGG(s) specified as per Section 4.

The input to this operation is a set of files (specified as described in Section 7), with each file containing a set of locations associated with one specific class of objects. If the input files are in TEXT format (choice parameter point_input_file_type has value TEXT), then each line in each input file should consist of a longitude and a latitude (both in decimal degrees), separated by the character indicated within double quotes in the string parameter input_delimiter. Each location can be followed, on the same line, by arbitrary text which is ignored by DGGRID; this arbitrary text must also be separated from the latitude/longitude address by the same input delimiter character.

DGGRID determines which classes occur in which cells in the specified DGG(s). The result for each cell is specified as a presence/absence vector, which is a string of 0’s and 1’s. The length of the string corresponds to the number of input files (and therefore to the number of classes). Each character in the string indicates whether the corresponding class is present (indicated by a 1) or not present (indicated by a 0) in that cell. The first character in the string corresponds to the class represented by the first file listed in input_files, the second character corresponds to the second file listed in input_files, and so forth.

If the boolean parameter output_presence_vector is set to TRUE (the default), for each output cell the calculated presence vector is output in a cell field with the field name specified in the string parameter output_presence_vector_field_name (default value “presVec”).

If the boolean parameter output_count is set to TRUE (the default is FALSE), for each output cell the number of input points that are contained in that cell is output in the cell field with the field name specified in the string parameter output_count_field_name (default value “count”).

If the boolean parameter output_num_classes is set to TRUE (the default is FALSE), for each output cell the number of classes that are contained in that cell (i.e., the number of 1’s in the cell’s presence vector) is output in the cell field with the field name specified in the string parameter output_num_classes_name (default value “numClass”).

In addition to the standard per-cell output described in Section 5, DGGRID can output the cells in a text file format by setting the choice parameter output_file_type to TEXT (the default for this operation; set to NONE for no text output), and the string parameter output_file_name (default “valsout.txt”) to the desired text output file name. DGGRID will output the cell address and associated values for each cell, one cell per line, into the text file. The cell addresses are output in the form indicated by the choice parameter output_address_type (see Appendix C), using the character specified by parameter output_delimiter to separate any address components and to separate the address from the associated value.

By setting the choice parameter cell_output_control you can limit DGGRID to only out-putting those cells which contain at least one class of object (OUTPUT_OCCUPIED) or have DGGRID output all cells (OUTPUT_ALL), in which case cells containing no input-specified locations would have presence/absence vectors consisting entirely of 0’s.

11. Performing Address Conversions

Setting the choice parameter dggrid_operation to TRANSFORM_POINTS tells DGGRID to perform address conversion. The input file(s) are specified as described in Section 7, except that this operation currently supports only TEXT input.

Each line in each input file should consist of an address followed by optional arbitrary text. The components of the address (if any) must be delimited by the character indicated within double quotes in the string parameter input_delimiter, and if there is text following the address it must also be separated from the address by that character. The address must be a valid address under the address form indicated in the choice parameter input_address_type (see Appendix C). Address types other than GEO are interpreted as addresses in a DGG specified as per Section 4.

Each input address is transformed to an address of the form indicated by the choice parameter output_address_type (see Appendix C), and the resulting cells are output. The transformed cell address is output in a field named “name”.

In addition to the standard per-cell output described in Section 5, DGGRID can output the cells in a text file format by setting the choice parameter output_file_type to TEXT (the default for this operation; set to NONE for no text output), and the string parameter output_file_name (default “valsout.txt”) to the desired text output file name. DGGRID will output each transformed address, one cell per line, into the text file using the value of output_delimiter to separate any address components. If there was additional text on the input line following the address, then an output delimiter followed by that text is appended to the output line.

The TRANSFORM_POINTS operation can be used to determine the DGG cells that correspond to a set of input geodetic coordinates by using an input_address_type of GEO and an output_address_type corresponding to the desired DGG indexing (e.g., SEQNUM; see Appendix C). Note that this may result in the same cell being output more than once. Also note that DGGRID cannot be used to transform between two different DGGs in a single run, since only one DGG can be defined per run. However, this can be accomplished in two steps by first using DGGRID to transform cell addresses in the input DGG into GEO addresses, and then using a second run of DGGRID to transform those GEO addresses into the desired output DGG.

12. Outputting Grid Statistics

Specifying the value OUTPUT_STATS for the choice parameter dggrid_operation causes DGGRID to output a table of grid characteristics for the specified DGG (see Section 4). The output table will consist of all grid resolutions from 0 up to and including the specified DGG resolution. The values output for each resolution are the number of cells, the average area of a hexagonal cell in square kilometers, and the characteristic length scale (CLS). The CLS is the diameter of a spherical cap of the same area as a hexagonal cell of the specified resolution; this metric was suggested by Ralph Kahn. The calculation of average cell area uses the specified earth radius (see Section 4.5).

The integer parameter precision (default 7) specifies the number of digits to the right of the decimal point to output for each floating point value.

Appendix A. DGGRID Metafile Parameters

Parameter Name

Description

Allowed Values

Default

Notes

Used When

bin_coverage (choice)

Are values distributed over most of the globe or only a relatively small portion?

GLOBAL, PARTIAL

GLOBAL

Allows DGGRID to determine how to trade-off speed vs. memory usage

dggrid_operation is GENERATE_GRID_FROM_POINT, BIN_POINT_VALS or BIN_POINT_PRESENCE

cell_output_control (choice)

Designates which cells to output

OUTPUT_ALL, OUTPUT_OCCUPIED

OUTPUT_ALL

OUTPUT_ALL - output all cells, even if no input values were associated with them; OUTPUT_OCCUPIED - output only cells with associated input values

dggrid_operation is BIN_POINT_VALS or BIN_POINT_PRESENCE

cell_output_file_name (string)

Cell boundary output file name prefix

any

“cells”

cell_output_type is AIGEN, SHAPEFILE, or KML

cell_output_gdal_format (string)

Cell boundary output file format

GDAL-compatible vector file format (see gdal.org)

GeoJSON

cell_output_type is GDAL

cell_output_type (choice)

Cell boundary output file format

NONE, AIGEN, SHAPEFILE, KML, GEOJSON, GDAL, GDAL_COLLECTION

AIGEN

children_output_type (choice)

Output cell spatial children?

NONE, TEXT, GDAL_COLLECTION

NONE

children_output_file_name (string)

Spatial children output file name

any

“chd”

children_output_type is TEXT

clip_cell_res (integer)

Resolution of clipping cells

0 < v < r, where r is the currently specified DGG resolution

1

dggrid_operation is GENERATE_GRID and clip_subset_type is COARSE_CELLS

clip_cell_densification (integer)

Number of points-per-edge densification for clipping cell boundaries

0 ≤ v ≤ 500

1

v of 0 indicates no densification

dggrid_operation is GENERATE_GRID and clip_subset_type is COARSE_CELLS

clip_cell_seqnums (string)

Sequence number(s) of coarse clipping cells

seqNum1 seqNum2 … seqNumN

Cell resolution given by clip_cell_res

dggrid_operation is GENERATE_GRID and clip_subset_type is COARSE_CELLS

clip_region_files (string)

Space delimited list of files that specify grid clipping

any

“test.gen”

dggrid_operation is GENERATE_GRID

clip_subset_type (choice)

Specifies how portion of DGG to generate will be determined

WHOLE_EARTH, AIGEN, SHAPEFILE, GDAL, SEQNUMS, COARSE_CELLS

WHOLE_EARTH

SEQNUMS is not supported if dggs_aperture_type is SEQUENCE; COARSE_CELLS is only supported for hexagon grids

dggrid_operation is GENERATE_GRID

clip_type (choice)

Method for determining whether a cell is included by a clipping polygon

POLY_INTERSECT

POLY_INTERSECT

dggrid_operation is GENERATE_GRID

clipper_scale_factor (integer)

Number of cell inclusion tests to perform between outputting status updates

1 ≤ v

1000000

dggrid_operation is GENERATE_GRID

clip_using_holes (boolean)

Handle holes in input polygons?

TRUE, FALSE

0

dggrid_operation is GENERATE_GRID; clip_subset_type is GDAL

collection_output_file_name (string)

Collection output file name prefix

any

“cells”

See the last paragraph of Section 6

collection_output_gdal_format (string)

Collection output file format

GDAL-compatible vector file format (see gdal.org)

GeoJSON

See the last paragraph of Section 6

densification (integer)

Number of points-per-edge densification to use when generating cell boundaries

0 ≤ v ≤ 500

0

v of 0 indicates no densification

dggrid_operation (choice)

Specifies the operation to be performed by this run of DGGRID

GENERATE_GRID, BIN_POINT_VALS, BIN_POINT_PRESENCE, TRANSFORM_POINTS, OUTPUT_STATS

GENERATE_GRID

always

dggs_aperture (integer)

Desired DGGS aperture

3, 4, 7

4

dggs_aperture_type is PURE

dggs_aperture_sequence (string)

The DGGS aperture sequence

string of 3’s, 4’s, and 7’s in any order

“333333333333”

dggs_aperture_type is SEQUENCE

dggs_aperture_type (choice)

Is the aperture sequence pure or mixed?

PURE, MIXED43, SEQUENCE

PURE

dggs_topology is HEXAGON

dggs_num_aperture_4_res (integer)

Number of aperture 4 resolutions in a mixed aperture sequence

0 ≤ v ≤ 35

0

dggs_aperture_type is MIXED43

dggs_num_placements (integer)

Number of grid placements to use

1 ≤ v

1

If dggs_orient_specify_type is not RANDOM all placements will be the same

dggs_orient_output_file_name (string)

Name of file for output of multiple DGGS placement parameter values

any

“grid.meta”

dggs_num_placements > 1

dggs_orient_rand_seed (integer)

Seed for orientation random number generator

0 ≤ v

77316727

dggs_orient_specify_type is RANDOM

dggs_orient_specify_type (choice)

How is the DGG orientation specified?

RANDOM, SPECIFIED, REGION_CENTER

SPECIFIED

dggs_proj (choice)

Projection used by the DGGS

ISEA, FULLER

ISEA

dggs_res_spec (integer)

Specified DGG resolution

0 ≤ v ≤ 35

9

If dggs_type is SUPERFUND then 0 ≤ v ≤ 9; if dggs_aperture_type is SEQUENCE then 0 ≤ v ≤ n, where n is the length of dggs_aperture_sequence

dggs_res_specify_type is SPECIFIED

dggs_res_specify_area (double)

Desired cell area

1.0 ≤ v

100

dggs_res_specify_type is CELL_AREA

dggs_res_specify_intercell_distance (double)

Desired intercell distance (measured on the plane)

1.0 ≤ v

100

dggs_res_specify_type is INTERCELL_DISTANCE

dggs_res_specify_rnd_down (boolean)

Should the desired cell area or intercell distance be rounded down (or up) to the nearest DGGS resolution?

TRUE, FALSE

1

dggs_res_specify_type is CELL_AREA or INTERCELL_DISTANCE

dggs_res_specify_type (choice)

How is the DGGS resolution specified?

SPECIFIED, CELL_AREA, INTERCELL_DISTANCE

SPECIFIED

dggs_topology (choice)

Desired cell shape

HEXAGON, TRIANGLE, DIAMOND

HEXAGON

dggs_type (choice)

Specify a preset DGG type

CUSTOM, SUPERFUND, PLANETRISK, ISEA3H, ISEA4H, ISEA7H, ISEA43H, ISEA4T, ISEA4D, FULLER3H, FULLER4H, FULLER7H, FULLER43H, FULLER4T, FULLER4D

CUSTOM

See Appendix B for preset parameter value details

dggs_vert0_azimuth (double)

Azimuth from icosahedron vertex 0 to vertex 1 (degrees)

0.0 ≤ v ≤ 360.0

0

dggs_orient_specify_type is SPECIFIED

dggs_vert0_lat (double)

Latitude of icosahedron vertex 0 (degrees)

-90.0 ≤ v ≤ 90.0

58.28252559

dggs_orient_specify_type is SPECIFIED

dggs_vert0_lon (double)

Longitude of icosahedron vertex 0 (degrees)

-180.0 ≤ v ≤ 180.0

11.25

dggs_orient_specify_type is SPECIFIED

geodetic_densify (double)

Maximum degrees of arc for a clipping polygon line segment

0.0 ≤ v ≤ 360.0

0

0.0 indicates no densification

dggrid_operation is GENERATE_GRID

input_address_type (choice)

Cell address form in input file(s)

GEO, Q2DI, SEQNUM, Q2DD, PROJTRI, VERTEX2DD, HIERNDX, deprecated: ZORDER, ZORDER_STRING, Z3, Z3_STRING, Z7, Z7_STRING

GEO

See Appendix C; SEQNUM is not allowed if dggs_aperture_type is SEQUENCE

dggrid_operation is TRANSFORM_POINTS

input_delimiter (string)

Character that delimits address components and additional data in the input files

v is any single character in double quotes

“ “ (a single space)

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

input_file_name (string)

Name of file containing input addresses

fileName

valsin.txt

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

input_files (string)

Name(s) of files containing lon/lat locations with associated values

fileName1 fileName2 … fileNameN

vals.txt

dggrid_operation is GENERATE_GRID_FROM_POINTS TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

input_hier_ndx_form (choice)

Index representation used in input file(s)

INT64, DIGIT_STRING

INT64

See Appendix C

input_address_type is HIERNDX

input_hier_ndx_system (choice)

Hierarchical indexing system used in input file(s)

ZORDER, Z3, Z7

Z3

See Appendix C

input_address_type is HIERNDX

input_value_field_name (string)

Field name containing value to bin

value

dggrid_operation is BIN_POINT_VALS

kml_default_color (string)

Color of cell boundaries in KML output

any valid KML color

ffffffff

cell_output_type is KML

kml_default_width (integer)

Width of cell boundaries in KML output

1 ≤ v ≤ 100

4

cell_output_type is KML

kml_description (string)

Description tag value in KML output file

Generated by DGGRID 6.3

cell_output_type is KML

kml_name (string)

Name tag value in KML output file

the output file name

cell_output_type is KML

longitude_wrap_mode (choice)

How handle vertex longitude for cells that straddle the anti-meridian?

WRAP, UNWRAP_EAST, UNWRAP_WEST

WRAP

max_cells_per_output_file (integer)

Maximum number of cells output to a single output file

0 ≤ v

0

0 indicates no maximum

neighbor_output_type (choice)

Output cell neighbors?

NONE, TEXT, GDAL_COLLECTION

NONE

Triangle grids not supported

neighbor_output_file_name (string)

Neighbors output file name

any

“nbr”

Triangle grids not supported

neighbor_output_type is TEXT

output_address_type (choice)

Address form to use in output

GEO, Q2DI, SEQNUM, PLANE, Q2DD, PROJTRI, VERTEX2DD, AIGEN, HIERNDX, deprecated: ZORDER, ZORDER_STRING, Z3, Z3_STRING, Z7, Z7_STRING

SEQNUM

See Appendix C

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

output_cell_label_type (choice)

Output form for generated cell indexes

GLOBAL_SEQUENCE, ENUMERATION, SUPERFUND

GLOBAL_SEQUENCE

output_count (boolean)

Output the count of classes which are present between the cell address and the presence vector

TRUE, FALSE

0

dggrid_operation is GENERATE_GRID_FROM_POINT, BIN_POINT_VALS or BIN_POINT_PRESENCE

output_count_field_name (string)

Field name containing count of contained points

count

dggrid_operation is GENERATE_GRID_FROM_POINTS BIN_POINT_VALS, or BIN_POINT_PRESENCE

output_delimiter (string)

Character that delimits address components and additional data in the output file

v is any single character in double quotes

“ “ (a single space)

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

output_file_name (string)

Name of file to use for output

valsout.txt

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

output_file_type (choice)

Operation-specific text output?

NONE, TEXT

TEXT

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

output_first_seqnum (integer)

Begin generating with this cell ID

0 ≤ v ≤ MAX_INT

0

dggrid_operation is GENERATE_GRID and clip_subset_type is WHOLE_EARTH

output_hier_ndx_form (choice)

Index representation used in output file(s)

INT64, DIGIT_STRING

INT64

See Appendix C

output_address_type is HIERNDX

output_hier_ndx_system (choice)

Hierarchical indexing system used in output file(s)

ZORDER, Z3, Z7

Z3

See Appendix C

output_address_type is HIERNDX

output_last_seqnum (integer)

Last cell ID to generate

0 ≤ v ≤ MAX_INT

MAX_INT

dggrid_operation is GENERATE_GRID and clip_subset_type is WHOLE_EARTH

output_mean (boolean)

Output the mean of contained point values?

TRUE, FALSE

1

dggrid_operation is BIN_POINT_VALS

output_mean_field_name (string)

Field name containing mean of contained point values

mean

dggrid_operation is BIN_POINT_VALS

output_num_classes (boolean)

Output the number of classes present in cell?

TRUE, FALSE

0

dggrid_operation is BIN_POINT_PRESENCE

output_num_classes_field_name (string)

Field name containing the number of classes present in cell

numClass

dggrid_operation is BIN_POINT_PRESENCE

output_presence_vector (boolean)

Output the cell presence vector?

TRUE, FALSE

1

dggrid_operation is BIN_POINT_PRESENCE

output_presence_vector_field_name (string)

Field name containing the cell presence vector

presVec

dggrid_operation is BIN_POINT_PRESENCE

output_total (boolean)

Output the total of contained point values?

TRUE, FALSE

0

dggrid_operation is BIN_POINT_VALS

output_total_field_name (string)

Field name containing total of contained point values

total

dggrid_operation is BIN_POINT_VALS

pause_before_exit (boolean)

Pause program execution before exiting

TRUE, FALSE

0

pause_on_startup (boolean)

Pause program execution at program start

TRUE, FALSE

0

point_input_file_type (choice)

Point input file type

TEXT, GDAL

TEXT

dggrid_operation is TRANSFORM_POINTS, BIN_POINT_VALS, or BIN_POINT_PRESENCE

point_output_file_name (string)

Cell point output file name prefix

any

“centers”

point_output_type is AIGEN, SHAPEFILE, KML, or TEXT

point_output_gdal_format (string)

Point output file format

GDAL-compatible vector file format (see gdal.org)

GeoJSON

point_output_type is GDAL

point_output_type (choice)

Cell point output file format

NONE, AIGEN, KML, SHAPEFILE, TEXT, GEOJSON, GDAL, GDAL_COLLECTION

NONE

precision (integer)

Number of digits to right of decimal point when outputting floating point numbers

0 ≤ v ≤ 30

7

proj_datum (choice)

Desired earth radius datum

WGS84_AUTHALIC_SPHERE, WGS84_MEAN_SPHERE, CUSTOM_SPHERE

WGS84_AUTHALIC_SPHERE

proj_datum_radius (double)

Desired earth radius

1.0 ≤ v ≤ 10,000.0

6371.00718091847

proj_datum is CUSTOM_SPHERE

randpts_concatenate_output (boolean)

Put random points for multiple DGG placements in a single file?

TRUE, FALSE

1

randpts_output_type is AIGEN, KML, SHAPEFILE, or TEXT

randpts_num_per_cell (integer)

Number of random points to generate per cell

0 ≤ v

0

randpts_output_type is AIGEN, KML, SHAPEFILE, or TEXT

randpts_output_file_name (string)

Random points-in-cell output file name prefix

any

“randPts”

randpts_output_type is AIGEN, KML, SHAPEFILE, or TEXT and randpts_num_per_cell > 0

randpts_output_type (choice)

Random points-in-cell output file format

NONE, AIGEN, KML, SHAPEFILE, TEXT, GEOJSON

NONE

randpts_seed (integer)

Seed for cell points random number generator

0 ≤ v

77316727

randpts_output_type is RANDOM

region_center_lat (double)

Latitude of study region (degrees)

-90.0 ≤ v ≤ 90.0

0

dggs_orient_specify_type is REGION_CENTER

region_center_lon (double)

Longitude of study region (degrees)

-180.0 ≤ v ≤ 180.0

0

dggs_orient_specify_type is REGION_CENTER

rng_type (choice)

Specifies the random number generator to use

RAND, MOTHER

RAND

RAND: C standard library rand; MOTHER: George Marsaglia’s multiply-with-carry “Mother” function

shapefile_id_field_length (integer)

Number of digits in Shapefile output cell index strings

1 ≤ v ≤ 50

11

cell_output_type, point_output_type, or randpts_output_type is SHAPEFILE

wrap_points (boolean)

Output point longitudes using longitude_wrap_mode?

TRUE, FALSE

1

update_frequency (integer)

Number of cell inclusion tests to perform between outputting status updates

0 ≤ v

100000

dggrid_operation is GENERATE_GRID

verbosity (integer)

Amount of debugging output to display

0 ≤ v ≤ 3

0

z3_invalid_digit (choice)

Padding digit for unused resolutions in Z3 INT64 indexes

0, 1, 2, 3

0 (will switch to 3 in version 9.0)

See Appendix C

Appendix B. Default Values for Preset DGG Types

A preset grid type can be specified using the choice parameter dggs_type. All preset grid types share the following default parameter values:

dggs_orient_specify_type: SPECIFIED
dggs_num_placements: 1
dggs_vert0_lon: 11.25
dggs_vert0_lat: 58.28252559
dggs_vert0_azimuth: 0.0
dggs_res_specify_type: SPECIFIED

The table below gives the values of other parameters that are set by each preset DGG type. Note that any preset parameter value can be overridden by explicitly specifying a different value for that parameter in the metafile anywhere after the dggs_type parameter value has been specified.

dggs_type

dggs_topology

dggs_proj

dggs_res_spec

dggs_aperture_type

dggs_aperture

dggs_num_aperture_4_res

dggs_aperture_sequence

CUSTOM

HEXAGON

ISEA

9

PURE

4

N/A

N/A

SUPERFUND

HEXAGON

FULLER

9

MIXED43

N/A

N/A

N/A

PLANETRISK

HEXAGON

ISEA

11

SEQUENCE

N/A

N/A

43334777777777777777777

IGEO7

HEXAGON

ISEA

9

PURE

7

N/A

N/A

ISEA3H

HEXAGON

ISEA

9

PURE

3

N/A

N/A

ISEA4H

HEXAGON

ISEA

9

PURE

4

N/A

N/A

ISEA7H

HEXAGON

ISEA

9

PURE

7

N/A

N/A

ISEA43H

HEXAGON

ISEA

9

MIXED43

N/A

0

N/A

ISEA4T

TRIANGLE

ISEA

9

PURE

4

N/A

N/A

ISEA4D

DIAMOND

ISEA

9

PURE

4

N/A

N/A

FULLER3H

HEXAGON

FULLER

9

PURE

3

N/A

N/A

FULLER4H

HEXAGON

FULLER

9

PURE

4

N/A

N/A

FULLER7H

HEXAGON

FULLER

9

PURE

7

N/A

N/A

FULLER43H

HEXAGON

FULLER

9

MIXED43

N/A

0

N/A

FULLER4T

TRIANGLE

FULLER

9

PURE

4

N/A

N/A

FULLER4D

DIAMOND

FULLER

9

PURE

4

N/A

N/A

Note: In addition to the listed parameters, the preset type SUPERFUND also sets the value of the parameter output_cell_label_type to SUPERFUND.

The preset type IGEO7 sets the additional parameters:

input_address_type: HIERNDX
input_hier_ndx_system: Z7
input_hier_ndx_form: INT64
output_cell_label_type: OUTPUT_ADDRESS_TYPE
output_address_type: HIERNDX
output_hier_ndx_system: Z7
output_hier_ndx_form: INT64

Appendix C. DGG Address Forms

In DGGRID geographic coordinates are always expressed as:

longitude latitude

in decimal degrees. The parameters input_address_type and output_address_type refer to this address form as GEO.

DGGRID supports a number of address forms for specifying a particular cell in a DGG. These address forms are listed below according to their designation in the input_address_type and output_address_type parameters:

  • Q2DI - Quad number and (i, j) coordinates on that quad

  • SEQNUM - Linear address (1 to size-of-DGG)

Note: Not supported for parameter input_address_type if dggs_aperture_type is SEQUENCE

  • PLANE - (x, y) coordinates on unfolded ISEA plane

Note: Only supported for parameter output_address_type; not supported for parameter input_address_type

  • Q2DD - Quad number and (x, y) coordinates on that quad

  • PROJTRI - Triangle number and (x, y) coordinates within that triangle on the ISEA plane

  • VERTEX2DD - Vertex number, triangle number, and (x, y) coordinates on ISEA plane

  • HIERNDX Address specified as hierarchical index

Warning: The following values are deprecated and will be removed in version 9.0. The same address forms can be specified using HIERNDX:

  • ZORDER

  • ZORDER_STRING

  • Z3

  • Z3_STRING

  • Z7

  • Z7_STRING

If input_address_type or output_address_type has the value HIERNDX, then the specific address type is specified using input_hier_ndx_system/output_hier_ndx_system and input_hier_ndx_form/output_hier_ndx_form respectively.

input_hier_ndx_system or output_hier_ndx_system specifies the hierarchical indexing system to use for input or output respectively. It takes the following values:

  • ZORDER - quad number and digit-interleaved Q2DI coordinates, only available for hexagonal aperture 3 and 4 grids (not supported for aperture 7)

  • Z3 - base 3 Central Place Indexing (CPI) hierarchical index [Sahr 2019], only available for hexagonal aperture 3 grids

  • Z7 - base 7 Central Place Indexing (CPI) hierarchical index [Sahr 2019], only available for hexagonal aperture 7 grids

input_hier_ndx_form or output_hier_ndx_form specifies the index representation for input or output respectively. It takes the following values:

  • INT64 - the index is packed into a hexadecimal 64 bit integer, the digit used to fill unused resolutions in Z3 INT64 indexes is specified by the parameter z3_invalid_digit. The default value is 0 for DGGRID version 8.x, but will switch to 3 beginning with version 9.0.

  • DIGIT_STRING - consists of 2 characters representing the quad number followed by 1 character per hierarchical digit

Appendix D. Statistics for Some Preset ISEA DGGs

This appendix gives a table of characteristics for some hexagonal DGGs based on the ISEA projection that can be specified as preset DGG types using DGGRID (by setting metafile parameter dggs_type as specified).

The internode spacing statistics given in these tables were calculated empirically on a symmetrical subset of the grid cells at each resolution. They will differ from the internode spacing values used by DGGRID, which are calculated on the plane (and are therefore only approximate).

All measurements assume a spherical earth with a radius of 6,371.007180918475 km (WGS84 authalic sphere radius).

For footnotes refer to the Notes section following all tables.

Aperture 3: ISEA3H

(dggs_type ISEA3H)

res

Number of Cells*

Hex Area (km²)

Internode Spacing (km)

min

max

mean

std.dev.

1

32

17,002,187.39

4,156.18

4,649.10

4,320.49

233.014

2

92

5,667,395.80

2,324.81

2,692.72

2,539.69

139.334

3

272

1,889,131.93

1,363.56

1,652.27

1,480.02

89.390

4

812

629,710.64

756.961

914.272

855.419

52.148

5

2,432

209,903.55

453.748

559.239

494.959

29.819

6

7,292

69,967.85

248.804

310.693

285.652

17.845

7

21,872

23,322.62

151.221

187.550

165.058

9.982

8

65,612

7,774.21

82.311

104.470

95.264

6.000

9

196,832

2,591.40

50.406

63.010

55.023

3.331

10

590,492

863.80

27.332

35.020

31.760

2.006

11

1,771,472

287.93

16.802

21.090

18.341

1.110

12

5,314,412

95.98

9.094

11.706

10.587

0.669

13

15,943,232

31.99

5.601

7.045

6.114

0.370

14

47,829,692

10.66

3.028

3.907

3.529

0.223

15

143,489,072

3.55

1.867

2.351

2.038

0.123

16

430,467,212

1.18

1.009

1.303

1.176

0.074

17

1,291,401,632

0.39

0.622

0.784

0.679

0.041

18

3,874,204,892

0.13

0.336

0.435

0.392

0.025

19

11,622,614,672

0.04

0.207

0.261

0.226

0.014

20

34,867,844,012

0.01

0.112

0.145

0.131

0.008

Aperture 4: ISEA4H

dggs_type ISEA4H

res

Number of Cells*

Hex Area (km²)

Internode Spacing (km)

min

max

mean

std.dev.

1

42

12,751,640.54

3,526.83

4,003.02

3,764.92

238.595

2

162

3,187,910.14

1,730.20

2,017.48

1,913.88

116.982

3

642

796,977.53

853.056

1,024.99

961.978

58.981

4

2,562

199,244.38

422.253

520.746

481.771

29.939

5

10,242

49,811.10

209.612

262.559

241.047

15.096

6

40,962

12,452.77

104.304

131.991

120.560

7.587

7

163,842

3,113.19

51.987

66.296

60.289

3.804

8

655,362

778.30

25.941

33.248

30.147

1.904

9

2,621,442

194.57

12.954

16.656

15.074

0.953

10

10,485,762

48.64

6.472

8.338

7.537

0.477

11

41,943,042

12.16

3.234

4.172

3.769

0.238

12

167,772,162

3.04

1.617

2.087

1.884

0.119

13

671,088,642

0.76

0.808

1.044

0.942

0.060

14

2,684,354,562

0.19

0.404

0.522

0.471

0.030

15

10,737,418,242

0.05

0.202

0.261

0.236

0.015

16

42,949,672,962

0.01

0.101

0.131

0.118

0.007

PlanetRisk Grid

dggs_type PLANETRISK

See Appendix F for a complete description of this grid system. The table below gives the first 12 resolutions, though higher resolutions can be generated (subsequent resolutions are aperture 7).

res

Number of Cells*

Hex Area (km²)

Internode Spacing (km)

min

max

mean

std.dev.

1

42

12,751,646.91

3,526.83

4,003.02

3,764.92

238.595

2

122

4,250,548.97

2,050.27

2,445.80

2,210.50

134.602

3

362

1,416,849.66

1,143.10

1,360.38

1,280.77

76.552

4

1,082

472,283.22

680.802

835.862

742.027

44.622

5

4,322

118,070.80

340.280

420.155

371.296

22.399

6

30,242

16,867.26

121.596

157.370

140.300

8.570

7

211,682

2,409.61

48.606

60.771

53.058

3.212

8

1,481,762

344.23

17.258

22.761

20.050

1.248

9

10,372,322

49.18

6.944

8.731

7.580

0.459

10

72,606,242

7.03

2.461

3.263

2.865

0.179

11

508,243,682

1.00

0.992

1.249

1.083

0.066

12

3,557,705,762

0.14

0.351

0.467

0.409

0.026

Mixed Aperture 4 and 3: ISEA43H

dggs_type ISEA43H

Note that this table is sorted by increasing cell size. In an ISEA43H grid the cell size is determined by the combination of values specified in the metafile for parameters dggs_num_aperture_4_res (the first column below) and dggs_res_spec (the second column).

# Ap 4

Res

Number of Cells*

Hex Area (km²)

Internode Spacing (km)

min

max

mean

std.dev.

1

2

122

4,250,546.85

2,050.27

2,445.80

2,210.50

134.602

1

3

362

1,416,848.95

1,143.10

1,360.38

1,280.77

76.552

2

3

482

1,062,636.71

1,021.81

1,246.71

1,111.74

66.880

1

4

1,082

472,282.98

680.802

835.862

742.027

44.622

2

4

1,442

354,212.24

565.397

690.570

642.047

39.506

3

4

1,922

265,659.18

510.496

628.590

556.761

33.523

1

5

3,242

157,427.66

374.894

463.735

428.311

26.595

2

5

4,322

118,070.75

340.280

420.155

371.296

22.399

3

5

5,762

88,553.06

280.264

349.094

321.328

20.043

4

5

7,682

66,414.79

255.197

315.517

278.506

16.820

1

6

9,722

52,475.89

226.838

280.577

247.569

14.957

2

6

12,962

39,356.92

186.147

233.607

214.279

13.427

3

6

17,282

29,517.69

170.125

210.751

185.688

11.227

4

6

23,042

22,138.26

139.315

175.549

160.731

10.095

1

7

29,162

17,491.96

123.743

156.199

142.878

8.981

5

6

30,722

16,603.70

127.592

158.489

139.270

8.425

2

7

38,882

13,118.97

113.415

141.018

123.797

7.490

3

7

51,842

9,839.23

92.655

117.432

107.168

6.747

4

7

69,122

7,379.42

85.061

105.994

92.849

5.619

1

8

87,482

5,830.65

75.609

94.292

82.533

4.995

5

7

92,162

5,534.57

69.396

88.247

80.382

5.066

2

8

116,642

4,372.99

61.655

78.499

71.452

4.505

6

7

122,882

4,150.92

63.795

79.643

69.638

4.215

3

8

155,522

3,279.74

56.707

70.841

61.900

3.747

4

8

207,362

2,459.81

46.192

58.966

53.591

3.382

1

9

262,442

1,943.55

41.044

52.443

47.638

3.007

5

8

276,482

1,844.86

42.530

53.209

46.425

2.810

2

9

349,922

1,457.66

37.804

47.322

41.267

2.498

6

8

368,642

1,383.64

34.614

44.282

40.195

2.538

3

9

466,562

1,093.25

30.758

39.380

35.729

2.257

7

8

491,522

1,037.73

31.898

39.956

34.819

2.108

4

9

622,082

819.94

28.353

35.532

30.950

1.874

1

10

787,322

647.85

25.203

31.597

27.512

1.666

5

9

829,442

614.95

23.053

29.565

26.798

1.693

2

10

1,049,762

485.89

20.486

26.289

23.820

1.505

6

9

1,105,922

461.21

21.265

26.675

23.213

1.405

3

10

1,399,682

364.42

18.902

23.719

20.634

1.249

7

9

1,474,562

345.91

17.280

22.192

20.099

1.270

4

10

1,866,242

273.31

15.357

19.732

17.865

1.129

8

9

1,966,082

259.43

15.949

20.022

17.410

1.054

1

11

2,361,962

215.95

13.648

17.545

15.881

1.004

5

10

2,488,322

204.98

14.177

17.802

15.475

0.937

2

11

3,149,282

161.96

12.602

15.829

13.756

0.833

6

10

3,317,762

153.74

11.513

14.809

13.399

0.847

3

11

4,199,042

121.47

10.232

13.167

11.911

0.753

7

10

4,423,682

115.30

10.633

13.360

11.606

0.703

4

11

5,598,722

91.10

9.451

11.878

10.317

0.625

8

10

5,898,242

86.48

8.631

11.113

10.050

0.635

1

12

7,085,882

71.98

8.401

10.561

9.171

0.555

5

11

7,464,962

68.33

7.671

9.880

8.933

0.565

9

10

7,864,322

64.86

7.974

10.025

8.705

0.527

2

12

9,447,842

53.99

6.818

8.784

7.940

0.502

6

11

9,953,282

51.25

7.088

8.913

7.738

0.468

3

12

12,597,122

40.49

6.301

7.924

6.878

0.416

7

11

13,271,042

38.43

5.752

7.413

6.700

0.424

4

12

16,796,162

30.37

5.112

6.590

5.955

0.377

8

11

17,694,722

28.83

5.316

6.687

5.803

0.351

1

13

21,257,642

23.99

4.544

5.859

5.294

0.335

5

12

22,394,882

22.78

4.726

5.945

5.158

0.312

9

11

23,592,962

21.62

4.313

5.562

5.025

0.318

2

13

28,343,522

18.00

4.200

5.285

4.585

0.278

6

12

29,859,842

17.08

3.833

4.944

4.467

0.283

10

11

31,457,282

16.21

3.987

5.017

4.352

0.264

3

13

37,791,362

13.50

3.407

4.395

3.970

0.251

7

12

39,813,122

12.81

3.544

4.460

3.869

0.234

4

13

50,388,482

10.12

3.150

3.965

3.439

0.208

8

12

53,084,162

9.61

2.875

3.709

3.350

0.212

1

14

63,772,922

8.00

2.800

3.525

3.057

0.185

5

13

67,184,642

7.59

2.555

3.297

2.978

0.188

9

12

70,778,882

7.21

2.658

3.346

2.902

0.176

2

14

85,030,562

6.00

2.271

2.931

2.647

0.167

6

13

89,579,522

5.69

2.363

2.974

2.579

0.156

10

12

94,371,842

5.40

2.156

2.782

2.512

0.159

3

14

113,374,082

4.50

2.100

2.644

2.293

0.139

7

13

119,439,362

4.27

1.916

2.474

2.233

0.141

11

12

125,829,122

4.05

1.994

2.510

2.176

0.132

4

14

151,165,442

3.37

1.703

2.199

1.985

0.126

8

13

159,252,482

3.20

1.772

2.231

1.934

0.117

1

15

191,318,762

2.67

1.514

1.955

1.765

0.112

5

14

201,553,922

2.53

1.575

1.984

1.719

0.104

9

13

212,336,642

2.40

1.437

1.855

1.675

0.106

2

15

255,091,682

2.00

1.400

1.763

1.528

0.093

6

14

268,738,562

1.90

1.277

1.649

1.489

0.094

10

13

283,115,522

1.80

1.329

1.674

1.451

0.088

3

15

340,122,242

1.50

1.135

1.466

1.323

0.084

7

14

358,318,082

1.42

1.181

1.488

1.290

0.078

11

13

377,487,362

1.35

1.078

1.392

1.256

0.079

4

15

453,496,322

1.12

1.050

1.323

1.146

0.069

8

14

477,757,442

1.07

0.958

1.237

1.117

0.071

12

13

503,316,482

1.01

0.997

1.255

1.088

0.066

1

16

573,956,282

0.89

0.933

1.176

1.019

0.062

5

15

604,661,762

0.84

0.851

1.100

0.993

0.063

9

14

637,009,922

0.80

0.886

1.116

0.967

0.059

2

16

765,275,042

0.67

0.757

0.978

0.882

0.056

6

15

806,215,682

0.63

0.788

0.992

0.860

0.052

10

14

849,346,562

0.60

0.718

0.928

0.837

0.053

3

16

1,020,366,722

0.50

0.700

0.882

0.764

0.046

7

15

1,074,954,242

0.47

0.638

0.825

0.744

0.047

11

14

1,132,462,082

0.45

0.665

0.837

0.725

0.044

4

16

1,360,488,962

0.37

0.568

0.733

0.662

0.042

8

15

1,433,272,322

0.36

0.591

0.744

0.645

0.039

12

14

1,509,949,442

0.34

0.539

0.696

0.628

0.040

1

17

1,721,868,842

0.30

0.504

0.652

0.588

0.037

5

16

1,813,985,282

0.28

0.525

0.661

0.573

0.035

9

15

1,911,029,762

0.27

0.479

0.619

0.558

0.035

13

14

2,013,265,922

0.25

0.498

0.628

0.544

0.033

2

17

2,295,825,122

0.22

0.467

0.588

0.509

0.031

6

16

2,418,647,042

0.21

0.426

0.550

0.496

0.031

10

15

2,548,039,682

0.20

0.443

0.558

0.484

0.029

3

17

3,061,100,162

0.17

0.378

0.489

0.441

0.028

7

16

3,224,862,722

0.16

0.394

0.496

0.430

0.026

11

15

3,397,386,242

0.15

0.359

0.464

0.419

0.026

4

17

4,081,466,882

0.12

0.350

0.441

0.382

0.023

8

16

4,299,816,962

0.12

0.319

0.413

0.372

0.024

12

15

4,529,848,322

0.11

0.332

0.419

0.363

0.022

1

18

5,165,606,522

0.10

0.311

0.392

0.340

0.021

5

17

5,441,955,842

0.09

0.284

0.367

0.331

0.021

13

15

6,039,797,762

0.08

0.269

0.348

0.314

0.020

2

18

6,887,475,362

0.07

0.252

0.326

0.294

0.019

Notes

* At every resolution 12 of the cells are pentagons and the remainder are hexagons.

** The 12 pentagons at each resolution have an area exactly 5/6 the area of a hexagon.

Appendix E. The EPA Superfund_500m DGGS

Kevin Sahr

Department of Computer Science, Southern Oregon University, Ashland, OR 9752

email: sahrk@sou.edu

Denis White

US Environmental Protection Agency (retired)

email: whitede@onid.orst.edu

Introduction

The Superfund_500m grid was commissioned by the US Environmental Protection agency for use in developing its Superfund Emergency Response Atlas. The grid is a hierarchically indexed icosahedral hexagonal discrete global grid (DGG) (Sahr et al. 2003) consisting of approximately 22 hectare hexagons, with approximately 500 meter distance between hexagon centers. This cell size is generated geometrically by creating a mixed aperture sequence of two aperture 4 subdivisions followed by 15 aperture 3 subdivisions.

It is not possible to create a network of equal area, equal shape, and equally spaced grid cells greater than twenty in number on the surface of a sphere. Thus one or more, often two or all three, of these characteristics are distorted to varying degrees across the surface. The approach used here starts with the twenty triangular faces of the icosahedron, creates a regular, equal area, equal shape, and equally spaced network of hexagons of the desired size on one or more of the planar triangles and then projects these cells to the surface of the globe. The distortion characteristics of this approach have been investigated by Kimerling et al. (1999) and Gregory et al. (2008).

Grid characteristics for the 10 addressable Superfund_500m resolutions are given in Table 1.

Grid Construction

The cells are generated as regular hexagons (and pentagons) on the surface of an icosahedron, oriented relative to the globe so as to be symmetrical about the equator. The cells are projected to longitude and latitude on a sphere with the authalic WGS84 radius (NAD 83 datum) using the inverse icosahedral projection of R. Buckminster Fuller (1975) as developed analytically by Robert Gray (1995) and John Crider (2008).

The Superfund_500m cell identifiers are an instance of Central Place Indexing (CPI). CPI (Sahr, 2011; Sahr, 2019) is a class of hierarchical indexing systems for pure and mixed aperture hexagonal DGGs, where the linear index assigned to each cell is constructed as a path address (Sahr 2008) on a multi-resolution discrete global grid system with the specified aperture sequence. A CPI addressing system was used in the initial design for a sampling system for the EPA’s Environmental Monitoring and Assessment Program (White et al. 1992).

Table 1. Superfund_500m DGG Resolutions (see notes after table).

Resolution

# Cells¹

Hex Area²

Intercell Distance³ (km)

CLS⁴

(sq. km)

(km)

0

42

12,751,640.5431

3,526.8262

4,046.3596

1

162

3,187,910.1358

1,763.4131

2,016.7939

2

1,442

354,212.2373

587.8044

671.6409

3

12,962

39,356.9153

195.9348

223.8573

4

116,642

4,372.9906

65.3116

74.6182

5

1,049,762

485.8878

21.7705

24.8727

6

9,447,842

53.9875

7.2568

8.2909

7

85,030,562

5.9986

2.4189

2.7636

8

765,275,042

0.6665

0.8063

0.9212

9

2,295,825,122

0.2222

0.4655

0.5319

Table 1 Notes:

^1^At every resolution 12 of the cells are pentagons and the remainder are hexagons.

^2^The 12 pentagons have an area exactly 5/6 the area of a hexagon.

^3^Measured in the plane of the Fuller projection space.

^4^Characteristic Length Scale (CLS): the diameter of a spherical cap of the same area as a cell of the specified resolution. This metric was suggested by Ralph Kahn.

The Superfund_500m CPI system was designed to meet two design goals. First, the CPI approach allows the grid to have an intercell spacing of approximately 500 meters, which cannot be achieved with sufficient accuracy using a pure aperture grid system. Second, in order to take advantage of the pre-existing discrete global grid software tool DGGRID the cells needed to be hierarchically indexed in such a manner that the Christaller sets of each base cell are each restricted to a single ij coordinate system whose axes form two of the edges of a spherical quadrilateral formed by a pair of adjacent icosahedral faces.

These design goals were met by constructing a grid with base cells of valence 5 (i.e., with pentagonal voronoi areas) centered on each of the 12 vertices of an icosahedron and then applying the following aperture sequence:

4, 4, 3^ccw^, 3^cw^, 3^ccw^, 3^cw^, 3^ccw^, 3^cw^, 3^ccw^, 3^cw^, 3^ccw^, 3^cw^, 3^ccw^, 3^cw^, 3^ccw^, 3^cw^, 3^ccw^

To assign a unique hierarchical index to each cell, as well as to achieve the remaining grid design

goals, the generator types A-K were defined with the following generator string representations:

A: A123456

B: C123CCC

C: D123EED

D: F123IK6

E: J123GH6

F: D123EE6

G: DD234E6

H: EE2D456

I: E1DD456

J: E1D345E

K: D123E5D

Two of the base cells on opposing sides of the icosahedron are assigned generator type A, while the remaining 10 base cells (centered on the remaining 10 icosahedral vertices) are assigned generator type B. Figures 1-3 illustrate the resolution 17 regions corresponding to the resolution 1 grid cells, numbered 10-51 (to avoid leading zeros in indexes). The resolution 0 base tiles centered on the resolution 1 cells labeled 10 and 51 are the two base cells that were assigned generator type A, which generates a single pentagonal cell at all resolutions.

Index Form

The base tiles of the Superfund_500m CPI indexes correspond to resolution 1 DGG cells, as illustrated in Figure 1. Base tiles 11-50 each have four hierarchical children at the aperture 4 resolution 2, which are assigned the additional digits 1-4. These resolution 2 cells each have three children at resolution 3, which are assigned the additional digits 1-3; this assignment continues recursively through the aperture 3 resolutions 3-17. The special base tiles 10 and 51 have a single hierarchical child at all resolutions, which is assigned the additional digit 1 at each resolution. In order to reduce the length of indexes, a first order compression is performed by grouping the aperture 3 resolution 3-16 digits into pairs and replacing each pair of digits with a digit value of 1-9.

The assignment of digits has been chosen so that all indexes form integers with the same number of digits, and so that possibly troublesome leading zeros can be avoided, even if redundant leading digits are removed from indexes when working in regions where this is possible.

Thus the full resolution 17 Superfund_500m CPI indexes are condensed into indexes with 11 digits, resulting in 10 addressable grid resolutions (see Table 1).

A Superfund_500m index at full resolution (resolution 9) has the 11-digit form:

BB499999993

where:

- BB is the 2-digit resolution 1 base tile cell with values 10-51,

- 4 is the resolution 2 aperture 4 digit with values 1-4,

- each 9 represent two successive combined aperture 3 digits for resolutions 3-16, with values 1-9 each, and

- the final 3 represents the extra aperture 3 at resolution 17, with values 1-3

Note that the resolution 9 footprint of base tiles 11-50 form approximate spherical diamonds on the surface of the globe, as illustrated in Figure 1. Figures 2 and 3 illustrate the resolution 9 indexing footprints of base tiles adjacent to base tiles 10 and 15 respectively. The hierarchical children at each aperture 3 resolution form a compact triangle; Figure 4 illustrates the pattern formed at resolution 9.


Figure 1. Superfund_500m base tiles on an unfolded icosahedron with corresponding resolution 9 indexing footprints. Cells within the footprint region of a base tile will have that base tile’s index as the first two digits of the cell’s index. Tiles 10 and 51 index only a single cell at all resolutions, centered on the corresponding base tile. Note that all tiles that are centered on a triangle vertex are actually pentagons on the sphere.


Figure 2. Region around base tile 10 at resolution 9.


Figure 3. Region around base tile 15 at resolution 9.


Figure 4. Superfund_500m resolution 9 tiling pattern.

Appendix F. The PlanetRisk DGGS

Kevin Sahr1, Mark Dumas2, and Neal Choudhuri2

1Department of Computer Science, Southern Oregon University, Ashland, OR 97520

2PlanetRisk, Inc., 3 Bethesda Center Metro, Suite 508, Bethesda, MD 20814

Introduction

The efficiency of big data processing using modern massively distributed computing architectures is fundamentally limited by the efficiency of the algorithm used to shard the data – to partition that data for distributed storage and processing on multiple computing nodes. Efficiently sharding big data based on geospatial location has proven problematic. The most common geospatial location representations — vectors of floating point numbers representing latitude/longitude or planar map coordinates — do not naturally provide the global integer location index keys required for efficient sharding. The most common geospatial data structures, such as the quadtree and R-tree, have notoriously bad worst-case performance [Kanth et al. 1999; Arge et al. 2004], a serious concern when confronted with truly massive data sets. And because all of these systems are based on the pre-computer paper-based mapping paradigm of rectangular planar regions representing portions of the topologically spherical globe, attempting to use any of these representations on truly global big data sets exposes their intrinsic geometric weaknesses, which include areas of extreme distortion, singularities, and data under/over-sampling.

Efficient real-time analysis of multi-source global geospatial big data requires a common, consistent, multi-resolution geospatial reference frame, which naturally partitions the spherical earth into regular, integer-indexable, shards. In this paper we will systematically evaluate the available design options in order to develop the most advanced such system possible.

System Design

In order to address the issues with traditional approaches to location representation in next generation geospatial systems, researchers have recently focused on location representations based on the multi-resolution recursive partition of spherical polyhedra, called Discrete Global Grid Systems (DGGS) [Goodchild 2010; Goodchild et al. 2012]. Designing a specific DGGS requires making a series of basic design choices [Sahr et al. 2003]. Because DGGS’s are the most advanced geospatial discretization approach available to us, we choose to use a DGGS approach to designing the system.

In designing a DGGS, a base polyhedron must first be chosen on which the grid will be constructed. This choice establishes the underlying symmetries of the system. We choose the icosahedron as our base polyhedron, because it has the smallest face size amongst the platonic solids and hence the smallest distortion amongst equivalent face-centered polyhedral projections.

Second, we must choose a method for partitioning the surface of the icosahedron. Researchers in numerous fields (see the survey in [Sahr, 2011]) have consistently concluded that hexagons are the optimal choice for discrete gridding and location representation. The superiority of hexagons for all forms of discrete location representation stems from their unique geometric properties: amongst the three regular polygons that tile the plane (triangles, squares, and hexagons), hexagons are the most compact, they quantize the plane with the smallest average error [Conway and Sloane 1998], and they provide the greatest angular resolution [Golay 1969]. Unlike square and triangle grids, hexagon grids display uniform adjacency; each cell in a grid of hexagons has six neighbors, all of which share an edge with it, and all of which have centers exactly the same distance away from its center. We therefore choose to use a grid of hexagons. Note that the sphere cannot be fully tiled with hexagons; any hexagonal tiling using an icosahedral basis will always have 12 pentagonal grid cells, one centered at each of the icosahedron’s vertices.

The third basic DGGS design choice specifies the orientation of the icosahedron relative to the earth’s surface. We choose the standard Terra Cognita orientation, which is symmetrical about the equator and places only one icosahedral vertex/pentagonal cell on land, the minimum number known for a symmetrical orientation (see Figure 1).

pasted-image.pdf

Figure 1. A spherical icosahedron with standard Terra Cognita orientation.

Next we choose a method for transforming between the surface of the earth and the surface of the icosahedron upon which the grid of hexagons is constructed. Equal area cells greatly simplify statistical data analysis, and therefore we choose as our transformation the only known equal area icosahedral DGGS projection: the Icosahedral Snyder Equal Area (ISEA) projection [Snyder, 1992]. We further specify that cell center points will be calculated in the ISEA projection space.

The final design choice we must make is to chose a recursive method for constructing multiple resolutions of hexagon grids, ideally one in which the grids at different resolutions have a regular hierarchical relationship that can be exploited during analysis. Such grids are often constructed by specifying a sequence of apertures, or ratios between cell areas at a given grid resolution and the next coarser resolution, with research primarily focusing on the three “central place” apertures 3, 4, and 7 [Sahr 2003] (see Figure 2).

pasted-image.pdf

Figure 2. Three resolutions of three multi-resolution hexagon grid

apertures: (a) aperture 3, (b) aperture 4, and (c) aperture 7.

In the case of an icosahedral/hexagonal DGGS the sequence begins with 12 fixed-size pentagons (forming a spherical dodecahedron), usually designated as resolution 0. A chosen sequence of apertures then determines the cell area and intercell-spacing at each coarser grid resolution. It would be desirable to have one grid resolution with cells as close as possible to 1 km^2^ in area, since that is both a generally familiar size as well as a reasonable base granularity for analysis. We evaluated all possible combinations of apertures 3, 4, and 7, and found that a sequence of eleven resolutions containing three aperture 3’s, two aperture 4’s, and six aperture 7’s creates a grid of hexagons with an area of 1.002464 km^2^, the closest it is possible to achieve to 1 km^2^ in area with this approach.

Any sequence consisting of the required mix of apertures will achieve our 1 km^2^ cell area, but we want to arrange their ordering for optimal value. We chose to do an initial aperture 4 in order to center cells on the north and south pole, which lie on the mid-points of icosahedron edges in the Terra Cognita orientation (see Figure 3).

pasted-image.pdf

Figure 3. Cell boundaries for the first grid resolution overlaid on base icosahedron.

Note the cell centered on the North Pole.

We choose to order the remaining apertures from smallest to largest, minimizing the number of cells in the coarser resolution of the DGGS to enable efficient coarse filtering operations. We also specify that additional grid resolutions, beyond our 1 km^2^ resolution 11, should have an aperture of 7. Ordering the apertures as we do also has the effect of making the system geometrically a pure aperture 7 system at the finest resolutions; it should be noted that, of the three central place apertures, aperture 7 is geometrically the most efficient choice for sharding, since it forms unambiguous, balanced hierarchies that are optimally compact and “hexagon like” across resolutions.

We have now completed the design choices needed to specify our DGGS. Table 1 gives some characteristics of the first 12 resolutions of the system, and Figure 4 illustrates the cell boundaries of one grid resolution.

pasted-image.pdf

Figure 4. Grid cell boundaries for resolution 5 of the PlanetRisk DGGS.

res

aperture

#cells

hex area (km²)

inter-node spacing (km)

min

max

mean

std dev

0

N/A

12

N/A

7,053.6500

7,053.6500

7,053.6500

0.0000

1

4

42

12,751,646.9098

3,526.8300

4,003.0200

3,764.9200

238.5950

2

3

122

4,250,548.9699

2,050.2700

2,445.8000

2,210.5000

134.6020

3

3

362

1,416,849.6566

1,143.1000

1,360.3800

1,280.7700

76.5518

4

3

1,082

472,283.2189

680.8020

835.8620

742.0270

44.6220

5

4

4,322

118,070.8047

340.2800

420.1550

371.2960

22.3994

6

7

30,242

16,867.2578

121.5960

157.3700

140.3000

8.5704

7

7

211,682

2,409.6083

48.6057

60.7706

53.0575

3.2118

8

7

1,481,762

344.2298

17.2579

22.7613

20.0503

1.2484

9

7

10,372,322

49.1757

6.9437

8.7313

7.5797

0.4589

10

7

72,606,242

7.0251

2.4609

3.2634

2.8645

0.1789

11

7

508,243,682

1.0036

0.9919

1.2494

1.0828

0.0656

12

7

3,557,705,762

0.1434

0.3514

0.4667

0.4092

0.0256

Table 1. The first 12 resolutions of the PlanetRisk DGGS.

Conclusions

In this paper we have developed a discrete location reference system for global geospatial big data analysis, optimized for efficient location-based sharding. We evaluated the most advanced design options available to us, making optimal choices at each step, to develop what we believe to be the most advanced such system currently known: the PlanetRisk Discrete Global Grid System (DGGS).

Appendix G. References

L. Arge, M. de Berg, H. J. Haverkort, and K. Yi. 2004. The priority R- tree: A practically efficient and worst-case optimal R-tree. In Proceedings of ACM Management of Data (SIGMOD), pages 347– 358.

Conway, J. H., and N. J. A. Sloane. 1998. Sphere packings, lattices, and groups. New York, New York: Springer-Verlag. 679p.

Crider JE. 2008. Exact equations for Fuller’s map projection and inverse. Cartographica 43(1):67-72.

Fuller RB. 1975. Synergetics. New York: MacMillan.

Golay, J.E. 1969. Hexagonal parallel pattern transformations. IEEE Transactions on Computers C-18(8): 733-9.

Goodchild, M.F., 2010. Twenty years of progress: GIScience in 2010. Journal of Spatial Information Science, 2010(1), pp. 3-20.

Goodchild, M.F., Guo, H., Annoni, A., Bian, L., de Bie, K., Campbell, F., Craglia, M., Ehlers, M., van Genderen, J., Jackson, D., Lewis, A.J., Pesaresi, M., Remetey-Fülöpp, G., Simpson, R., Skidmore, A., Wang, C., Woodgate, P., 2012. Next-generation digital earth. Proceedings of the National Academy of Sciences of the United States of America, 109(28), pp. 11088–11094.

Gray RW. 1995. Exact transformation equations for Fuller’s world map. Cartography and Geographic Information Systems 32:243-246.

Gregory MJ, Kimerling AJ, White D, Sahr K. 2008. A comparison of intercell metrics on discrete global grid systems. Computers, Environment and Urban Systems 32(3):188-203.

Kanth, K. V. R. and A. K. Singh. 1999. Optimal dynamic range searching in non-replicating index structures. In Proceedings of International Conference on Database Theory (ICDT), pages 257–276.

Kimerling AJ, Sahr K, White D, Song L. 1999. Comparing geometrical properties of discrete global grids. Cartography and Geographic Information Science 26(4):271-287.

Sahr K, White D, Kimerling AJ. 2003. Geodesic discrete global grid systems. Cartography and Geographic Information Science 30(2):121-134.

Sahr K. 2008. Location coding on icosahedral aperture 3 hexagon discrete global grids. Computers, Environment and Urban Systems 32(3):174-187.

Sahr, K. 2011. Hexagonal discrete global grid systems for geospatial computing. Archives of Photogrammetry, Cartography and Remote Sensing, 22:363-376.

Sahr, K. 2019. Central Place Indexing: Hierarchical Linear Indexing Systems for Mixed-Aperture Hexagonal Discrete Global Grid Systems. Cartographica: The International Journal for Geographic Information and Geovisualization, 54(1):16-29.

Snyder, J. P. 1992. An equal-area map projection for polyhedral globes. Cartographica 29(1): 10-21.

White D, Kimerling AJ, Overton WS. 1992. Cartographic and geometric components of a global sampling design for environmental monitoring. Cartography and Geographic Information Systems 19(1):5-22.
